LJ-852A-850W

PFC type/PFC类型: PPFC

Circuit architecture/电路架构:双晶+DC-DC全模

Rectifier/整流桥: GBU1006*2 10A/1600V

Efficiency/效率: 80+铜牌

Over Voltage Protection/过电压保护:是

Protect/保护: OPP/OVP/OCP/UVP/OTP

Back Wiring/背部走线:是

Cpu support/CPU支持: inter、AMD

Input Voltage/输入电压: AC115-264V

Input Frequency Range/输入频率范围: 47-63HZ

Input Current/输入电流: 5A-8A

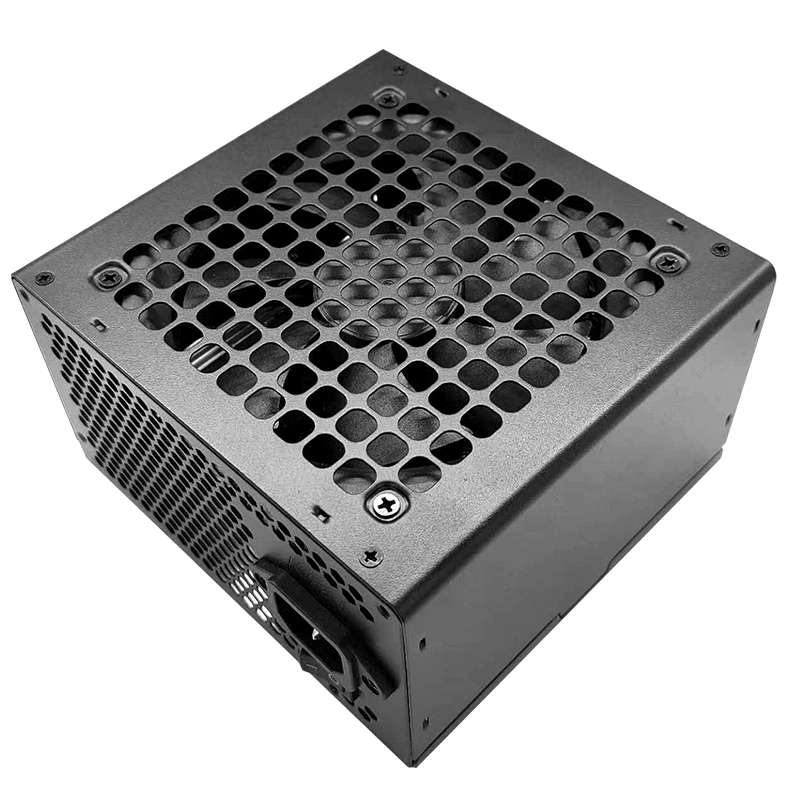

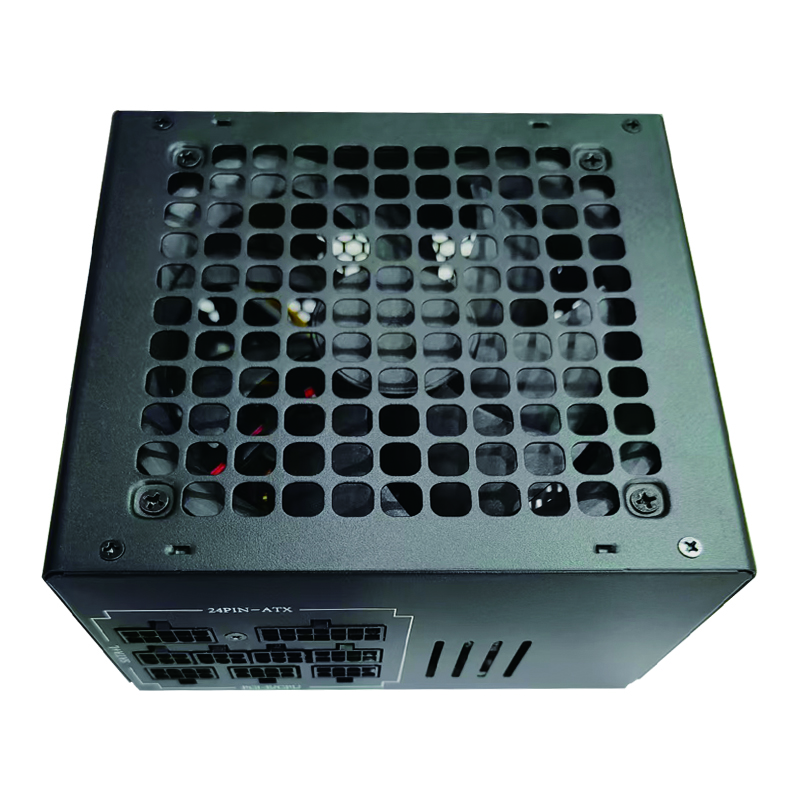

Introduction Photos

LJ-852A-850W

● Confirm EPS12V 2.92 Version

● Output Capacity: 850 Watts Continuous

● Low Ripple & Noise & High efficiency, 80% 82% 85%

● Operation Temperature:0~50℃

● Dimension: 162.5* 150 *86mm

● Single 14cm Low-Noise Fan

● Life expectancy: MTBF :≥100kh hours

● Multiple Protections Function：(OCP、OVP、UVP、OPP)

● Safety Approvals：CE,FCC,CCC,80PLUS,82PLUS,85PLUS

Output Connectors:

20+4Pin

4+4Pin

5 Pin

大4 Pin

6+2Pin 12V-2x6

2 1

Specification：

Model No	LJ-852A-850W
Output Wattage	850W
PFC	Active PFC
Efficiency	> 80 % Full load
P. G	100-500 ms
Hold-up Time	16ms Min
Weight	1.2KG
Color	Black
Fan	Single 14cm*1
Dimension	160mm (L) x 150mm(W) x 86mm(H)
Protection	OCP、OVP、UVP、OPP、Short Circuit Protection

INPUT

Input Voltage

AC100-264V

Input Frequency

47-63HZ

MTBF

100,000 hrs minimum (at 25 ℃)

Output
Voltage	+5V	+3.3V	+12V	-12V	+5VSB

DC output	15	15	70	0.3	2.5A


1) Total wattage not exceed 850W 2) +5V and +3.3V total output wattage not exceed 100W 3) +12V output max current 70A
