LJ-1200A (700-1250W)

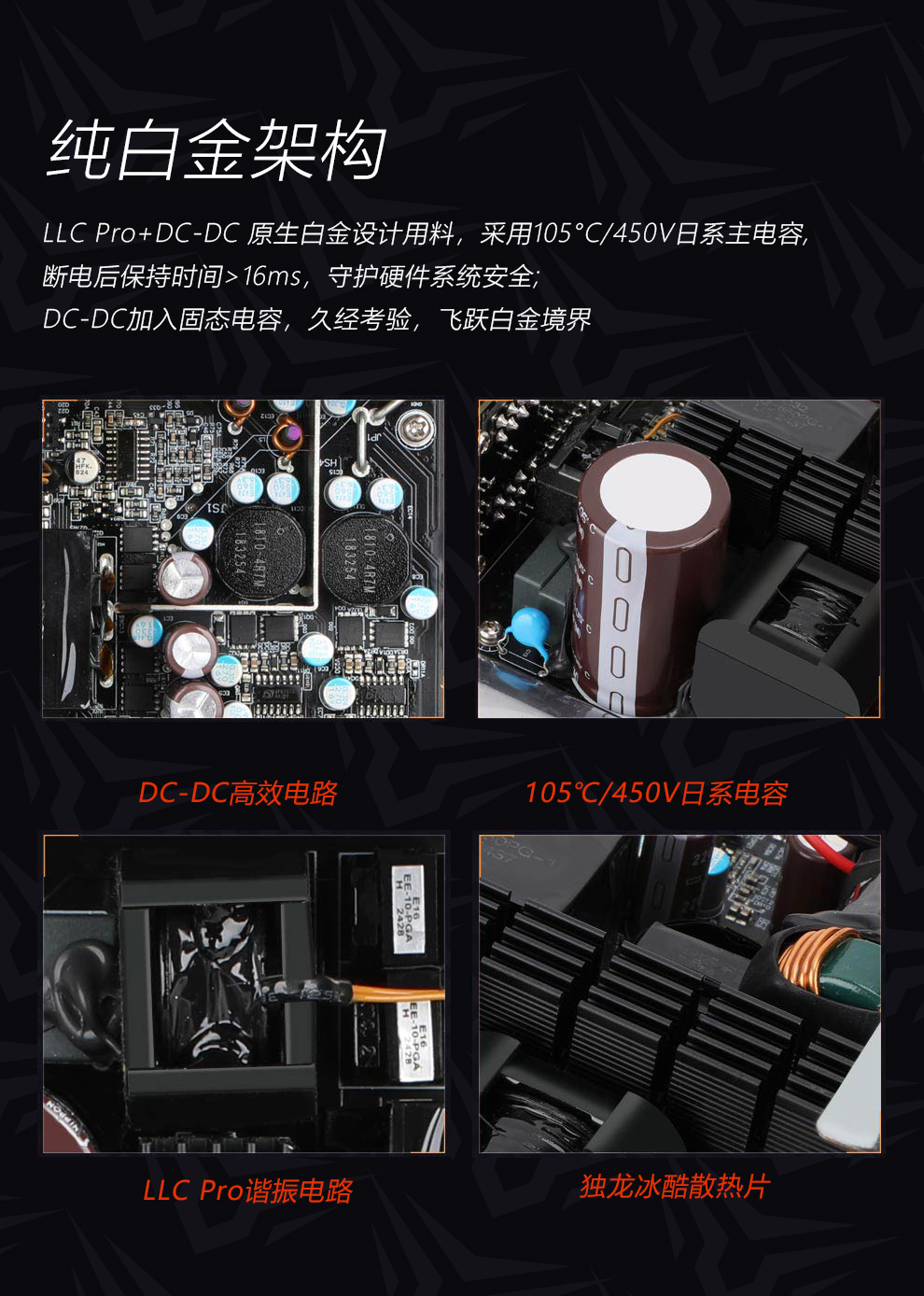

Circuit architecture/电路架构：半桥LLC谐振+同步整流+DC-DC

Rectifier/整流桥：GBU30K 30A/600V

Efficiency/效率： 80+白金牌

Protect/保护： OPP/OVP/OCP/UVP/OTP

Cpu support/CPU支持： inter、AMD

Input Voltage/输入电压： AC90-264V

Input Frequency Range/输入频率范围： 47-63HZ

Input Current/输入电流： 6A-12A

PWM/PFC MOSFET： PWM60R068*2 48A/600V 68mΩ 23A/550V.PFC60R074 47A/600V74mΩ.APFC二极管碳化硅15A/650V

APFC控制IC ：2PCS01 INFINEON

谐振/12V同步整流控制IC：HR1213G/MPS/MP6924A MPS

12V同步整流MOSFET：ZMS008N04 0.7MR/40V 310A

3.3V/5V DC-DC MOSFET

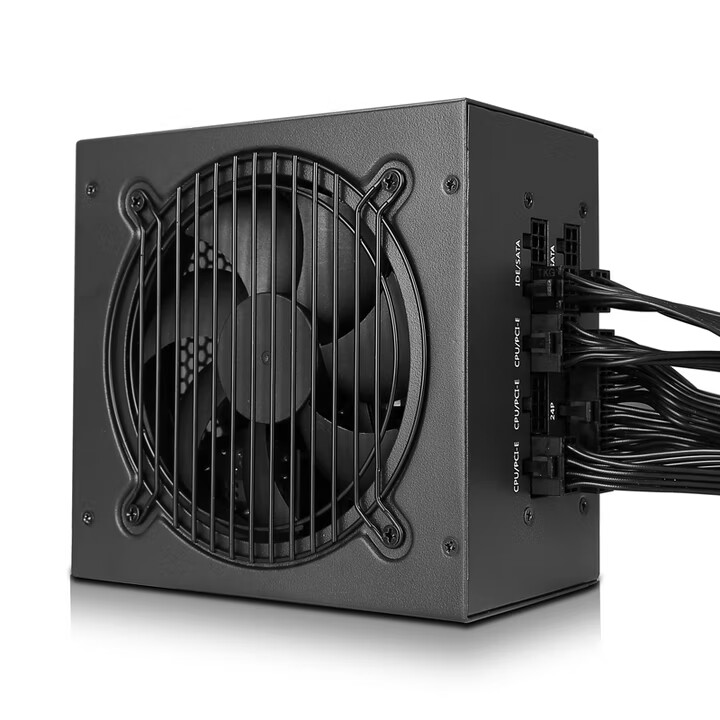

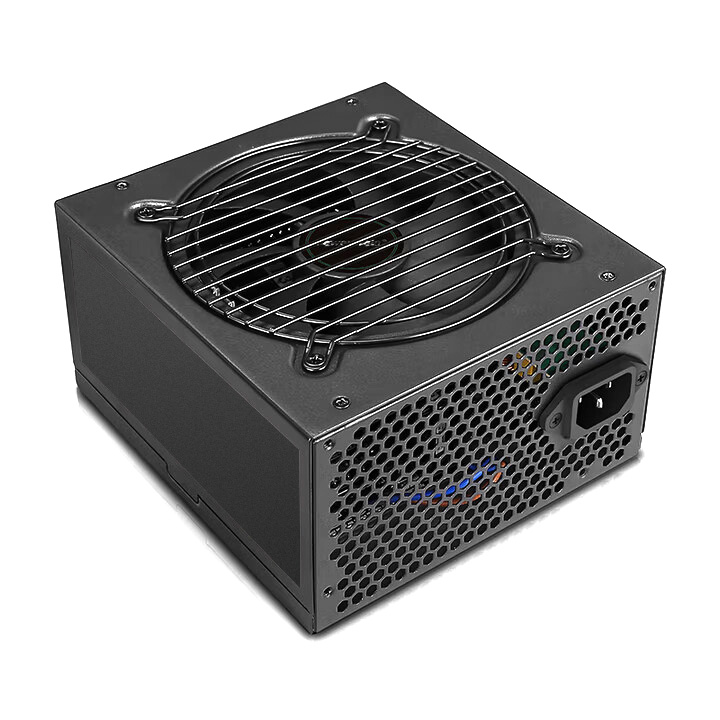

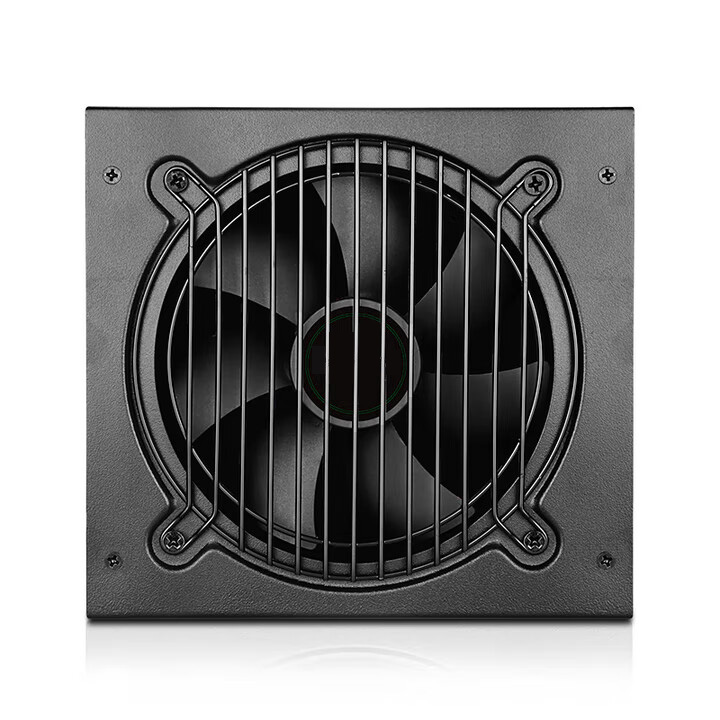

Introduction Photos

LJ-1200A-1250W(FULL module)

● Conformed to EPS12V VERSION

● Output Capacity: 1250 Watts Continuous

● Low Ripple & Noise

● Operation Temperature:0~50℃

● Dimension: 140* 150 *86mm

● Single 12cm Low-Noise Fan

● Life expectancy: MTBF >100kh hours

● Multiple Protections Function：(OCP、OVP、UVP、OPP)

● Safety Approvals：CE,FCC,CCC,80PLUS,82PLUS,85PLUS

Output Connectors:

Specification：

Model No	LJ-1250-2
Output Wattage	1250W
PFC	Active PFC
Efficiency	> 90 % Full load
P. G	100-500 ms
Hold-up Time	16ms Min
Weight	1.2 KG
Color	Black
Fan	Single 12cm*1
Dimension	140mm (L) x 150mm(W) x 86mm(H)
Protection	OCP、OVP、UVP、OPP、Short Circuit Protection

OUTPUT
DC output	+12V1	+12V2	+5V	+3.3V	-12V +5VSB
	51A	51A	20A	20A	0.5A 2A
	1150W		100W		5W 10W
Rated Power			1250W
Units	AMPS	AMPS	AMPS	AMPS	AMPS AMPS
1) Total DC output power shall not exceed 1250 Watts. 2) +5V and +3.3V outputs shall not exceed 100 Watts 3) +5V, +3.3V and +12V outputs shall not exceed 1050 Watts.
