LJ-752（300-850W)

PFC type/PFC类型 APFC

Circuit architecture/电路架构：同步整流+DC-DC

Rectifier/整流桥：GBU1510*2 15A/1000V

Efficiency/效率： 80+铜牌

Over Voltage Protection/过电压保护：是

Protect/保护： OPP/OVP/UVP/OTP

Cpu support/CPU支持：inter、AMD

Input Voltage/输入电压： AC100-264V

Input Frequency Range/输入频率范围： 47-63HZ

Input Current/输入电流： 6A-10A

PWM/PFC MOSFET：25N50*3 25A/500V APFC二极管碳化硅10A/650V

辅助电源电路IC：IC|D2221 SOP

APFC控制IC：SC3805 SOP

3.3V/5V DC-DC MOSFET: NDP23803QB 12A

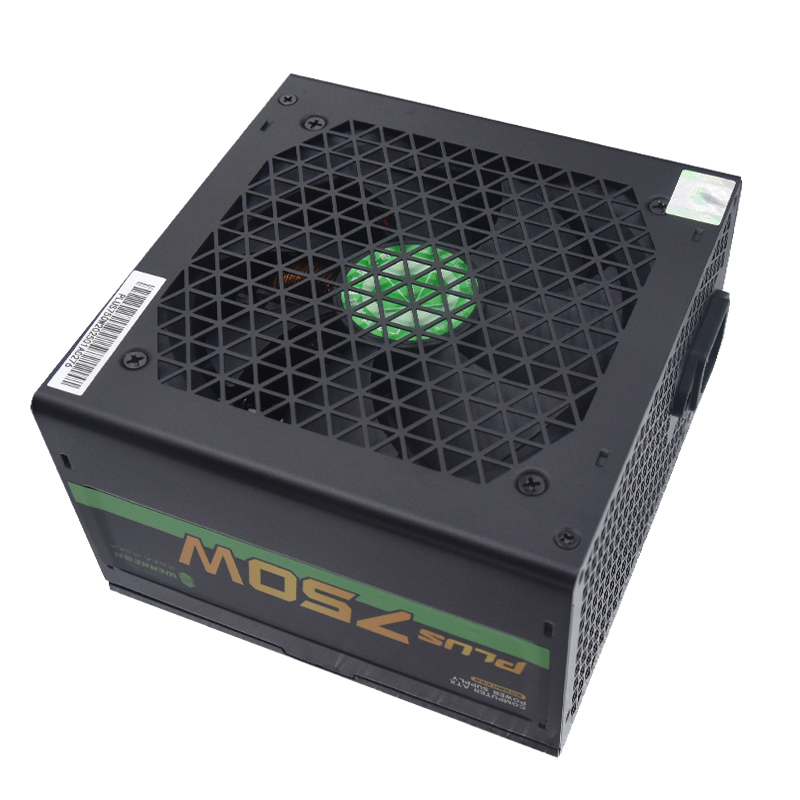

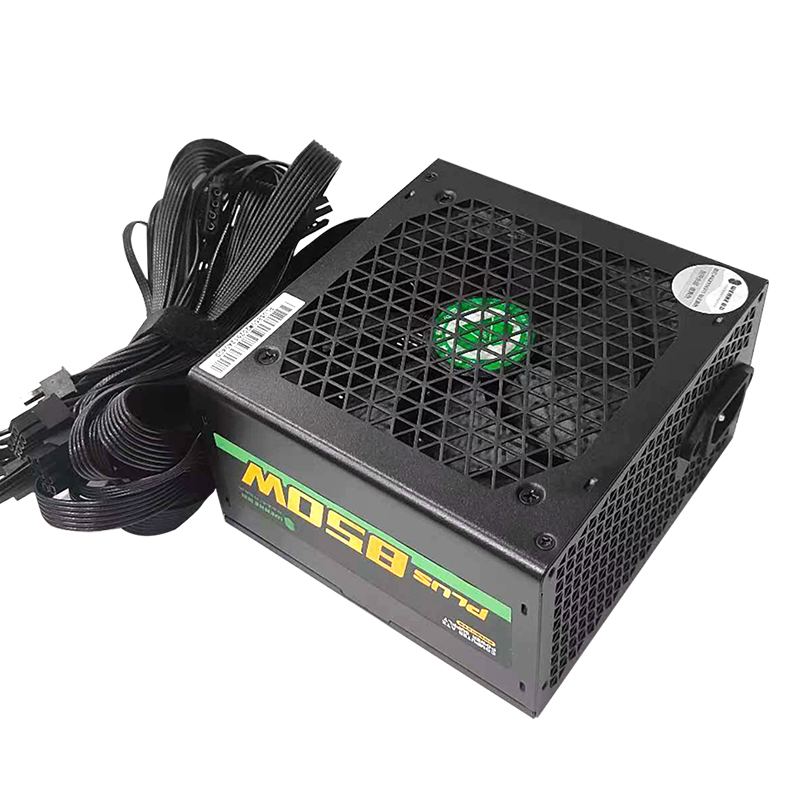

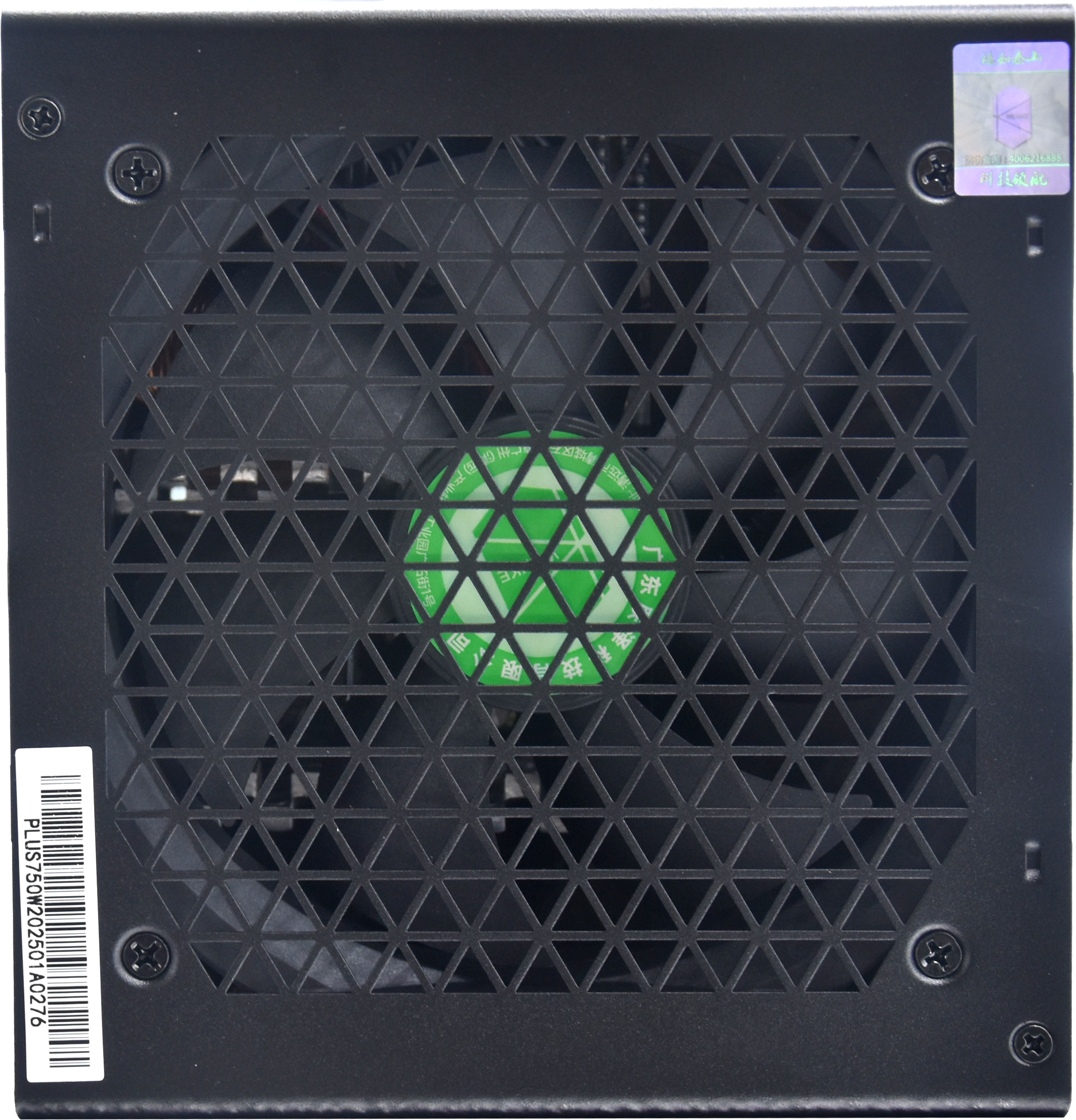

Introduction Photos

LJ-752-650W

● Confirm EPS12V 2.92 Version

● Output Capacity: 600 Watts Continuous

● Low Ripple & Noise & High efficiency, 80% 82% 85%

● Operation Temperature:0~50℃

● Dimension: 145* 150 *86mm

● Single 12cm Low-Noise Fan

● Life expectancy: MTBF :≥100kh hours

● Multiple Protections Function：(OCP、OVP、UVP、OPP)

● Safety Approvals：CE,FCC,CCC,80PLUS,82PLUS,85PLUS

Output Connectors:

Specification：

Model No	LJ-752-650W
Output Wattage	650W
PFC	Active PFC
Efficiency	> 80 % Full load
P. G	100-500 ms
Hold-up Time	16ms Min
Weight	1.2KG
Color	Black
Fan	Single 12cm*1
Dimension	140mm (L) x 150mm(W) x 86mm(H)
Protection	OCP、OVP、UVP、OPP、Short Circuit Protection

OUTPUT
Voltage	+5V	+3.3V	+12V	-12V	+5Vsb
MIN	1	0.5	0.0	0.5	0.0

MAX	15	15	58	0.3	2.5
Units	AMPS	AMPS	AMPS	AMPS	AMPS
1) Total DC output power shall not exceed 650 Watts. 2) +5V and +3.3V outputs shall not exceed 150 Watts 3) +5V, +3.3V and +12V outputs shall not exceed 648 Watts.
