LJ-753 (300-750W)|广州联杰电子

LJ-753 (300-750W)

PFC type/PFC类型: PPFC

Circuit architecture/电路架构: 双管正激

Rectifier/整流桥 : GBU1010*2 10A/1000V

Efficiency/效率: 80+白牌

Over Voltage Protection/过电压保护: 是

Protect/保护 OPP/OVP/UVP/OTP

Cpu support/CPU支持: inter、AMD

Input Voltage/输入电压: AC180-264V

Input Frequency Range/输入频率范围 :47-63HZ

Input Current/输入电流: 6A-10A

PWM MOSFET: 25N50*2 25A/500V

a控制IC: UTC3845 SOP

12V MOSFET: MBR60H100CT 60A100V T0-220 铁封

3.3V/5V DC-DC MOSFET

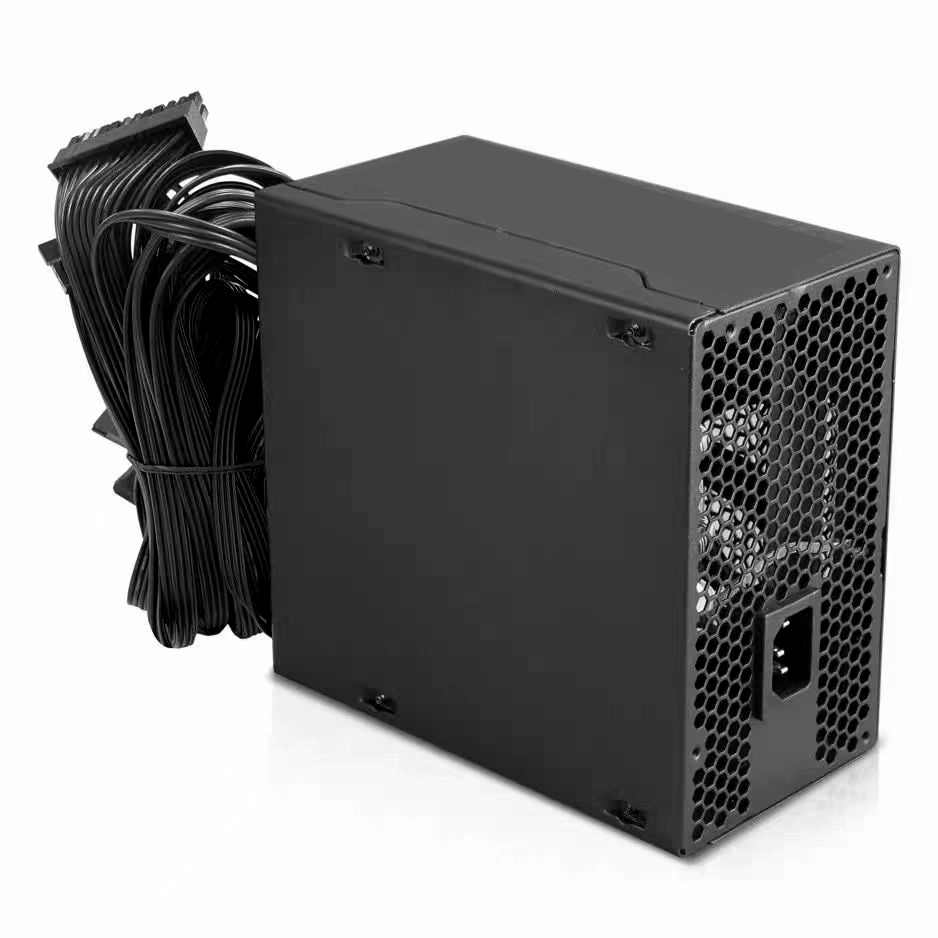

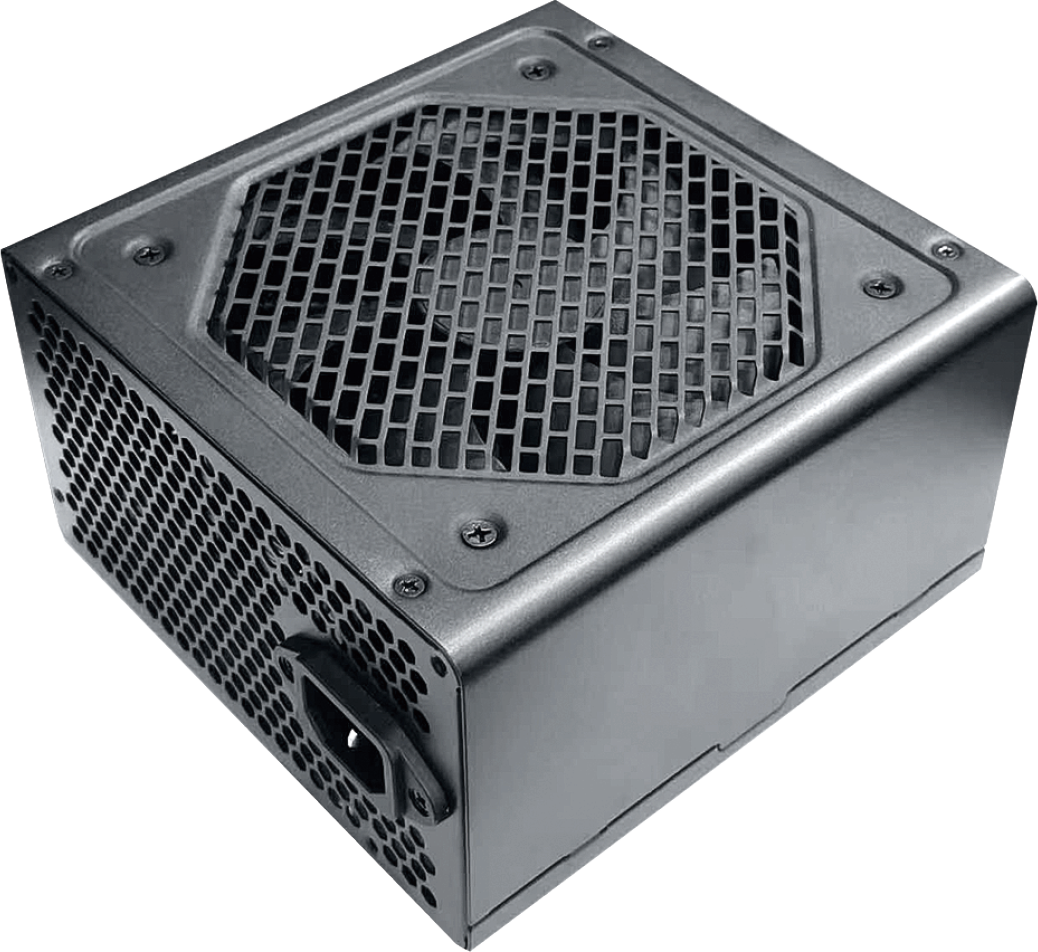

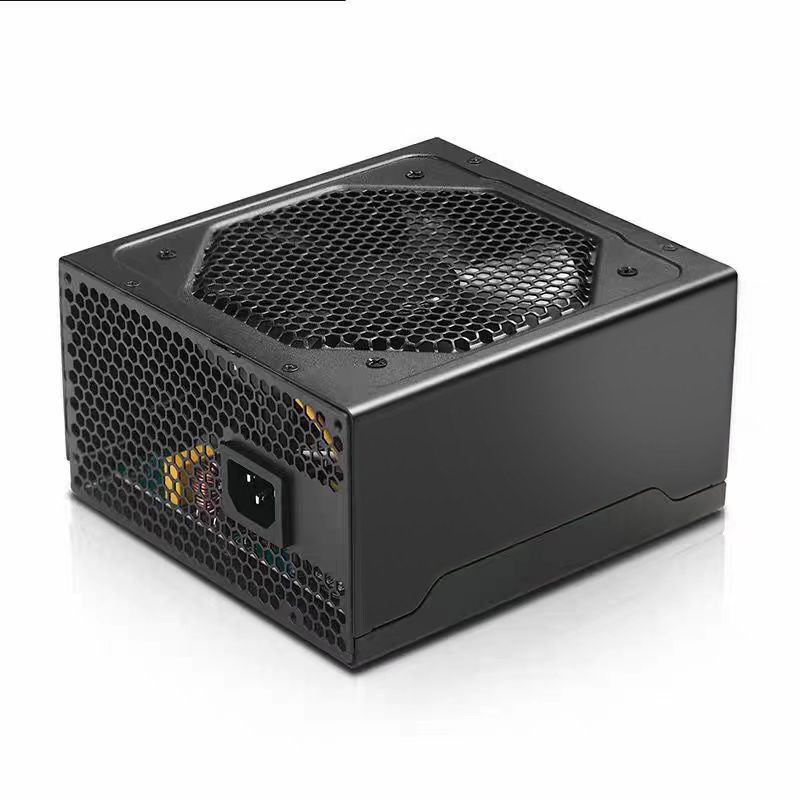

Introduction Photos

● Confirm EPS12V 2.92 Version

● Output Capacity: 300-750 Watts Continuous

● Low Ripple & Noise & High efficiency, 80% 82% 85%

● Operation Temperature:0~50℃

● Dimension: 145* 150 *86mm

● Single 12cm Low-Noise Fan

● Life expectancy: MTBF :≥100kh hours

● Multiple Protections Function：(OCP、OVP、UVP、OPP)

● Safety Approvals：CE,FCC,CCC,80PLUS,82PLUS,85PLUS

Output Connectors:

Specification：

Model No	LJ-753
Output Wattage	300-750W
PFC	Active PFC
Efficiency	> 80 % Full load
P. G	100-500 ms
Hold-up Time	16ms Min
Weight	1.2KG
Color	Black
Fan	Single 12cm*1
Dimension	140mm (L) x 150mm(W) x 86mm(H)
Protection	OCP、OVP、UVP、OPP、Short Circuit Protection

OUTPUT
Voltage	+5V	+3.3V	+12V	-12V	+5VSB
MIN	1	0.5	0.0	0.5	0.0
NOM	12.5	10	0.4	12.5	1.25
MAX	15A	15A	62A	0.3A	2.5A
Units	AMPS	AMPS	AMPS	AMPS	AMPS AMPS
1) Total DC output power shall not exceed 750Watts. 2) +5V and +3.3V outputs shall not exceed 200Watts 3) +5V, +3.3V and +12V outputs shall not exceed 744 Watts.
