LJ-1200BX (700-1250W)|广州联杰电子

LJ-1200BX (700-1250W)

Circuit architecture/电路架构：直出半桥LLC谐振+同步整流+DC-DC

Rectifier/整流桥： GBU30K 30A/600V

Efficiency/效率： 80+白金牌

Over Voltage Protection/过电压保护：是

Protect/保护： OPP/OVP/OCP/UVP/OTP

Cpu support/CPU支持： inter、AMD

Input Voltage/输入电压： AC90-264V

Input Frequency Range/输入频率范围 47-63HZ

Input Current/输入电流： 6A-12A

PWM/PFC MOSFET： PWM60R068*2 48A/600V 68mΩ 23A/550V.PFC60R074 47A/600V74mΩ.APFC二极管碳化硅15A/650V

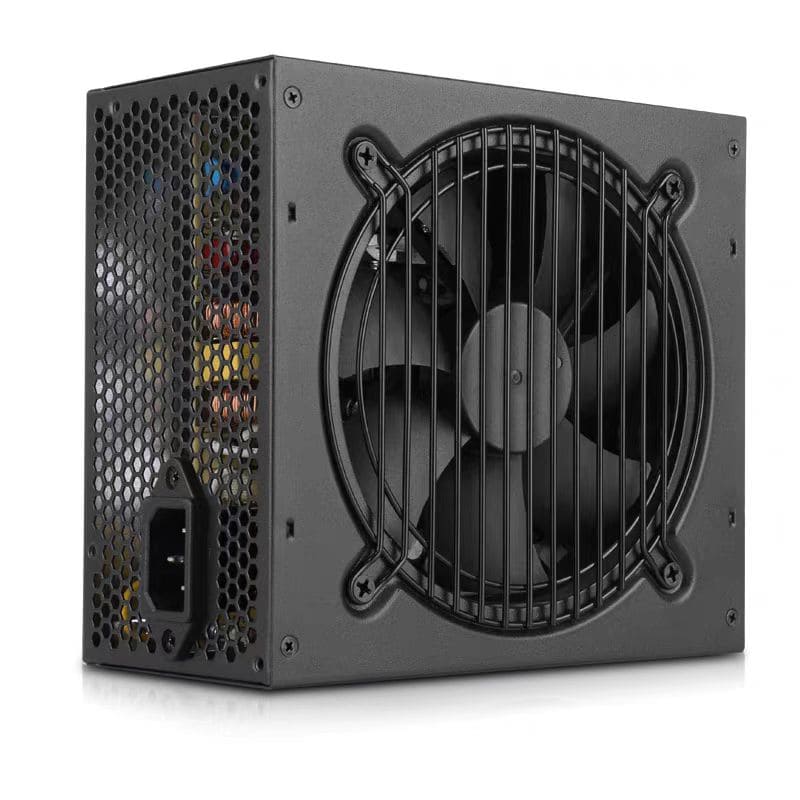

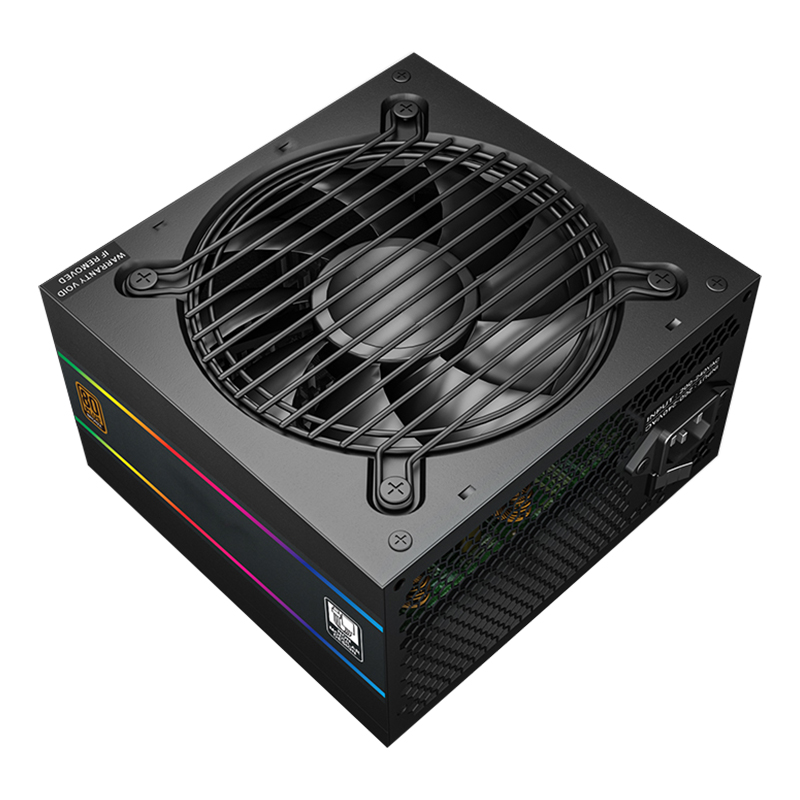

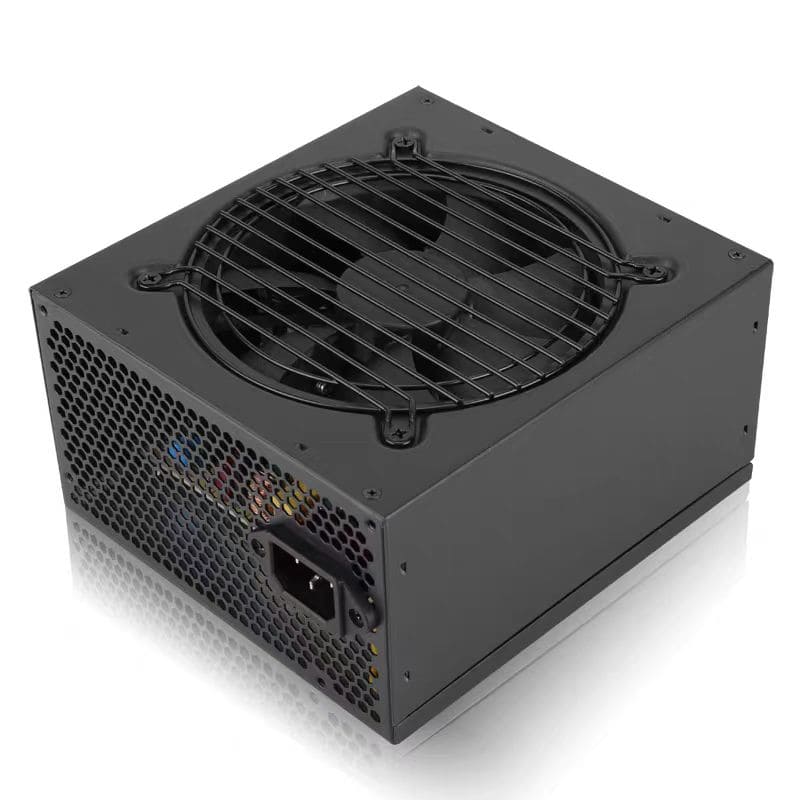

Introduction Photos

LJ-1200BX(700W-1250W)

● Confirm EPS12V 2.92 Version

● Output Capacity: 700-1250 Watts Continuous

● Low Ripple & Noise & High efficiency, 80% 82% 85%

● Operation Temperature:0~50℃

● Dimension: 140* 150 *86mm

● Single 12cm Low-Noise Fan

● Life expectancy: MTBF :≥100kh hours

● Multiple Protections Function：(OCP、OVP、UVP、OPP)

● Safety Approvals：CE,FCC,CCC,80PLUS,82PLUS,85PLUS

Output Connectors:

Specification：

Model No	LJ-1200BX
Output Wattage	700-1250W
PFC	Active PFC
Efficiency	> 80 % Full load
P. G	100-500 ms
Hold-up Time	16ms Min
Weight	1.2KG
Color	Black
Fan	Single 12cm*1
Dimension	140mm (L) x 150mm(W) x 86mm(H)
Protection	OCP、OVP、UVP、OPP、Short Circuit Protection

OUTPUT
Voltage	+5V	+12V1	-12V	+3.3V	+5Vsb +12V2
MIN	1	0.5	0.0	0.5	0.0 0.5
NOM	12.5	9.9	0.4	12.5	1.25 9.5
MAX	25	19	0.8	25	2.5 19
Units	AMPS	AMPS	AMPS	AMPS	AMPS AMPS
1) Total DC output power shall not exceed 1250 Watts. 2) +5V and +3.3V outputs shall not exceed 130 Watts 3) +5V, +3.3V and +12V outputs shall not exceed 535 Watts.
