LJ-401D(300-400W)

PFC type/PFC类型： PPFC

Circuit Structure/电路结构：半桥+ DC=DC方案

Rectifier/整流桥：GBU606 6A/600V

Over Voltage Protection/过电压保护：是

Protect/保护： OPP/OVP/OCP/UVP/OTP

Back Wiring/背部走线：是

Cpu support/CPU支持： inter、AMD

Input Voltage/输入电压： AC180-264V

Input Frequency Range/输入频率范围：47-63HZ

Input Current/输入电流：5A-8A

Transistor/晶体管：开关管:13009*2 12V:40100*2

12V整流控制IC：NDF23A05 10A

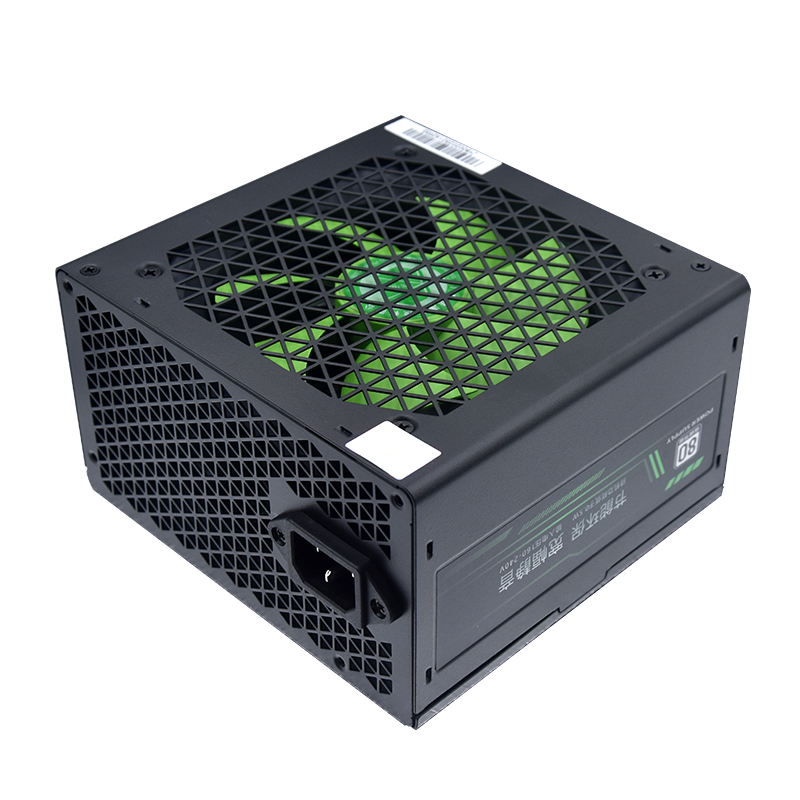

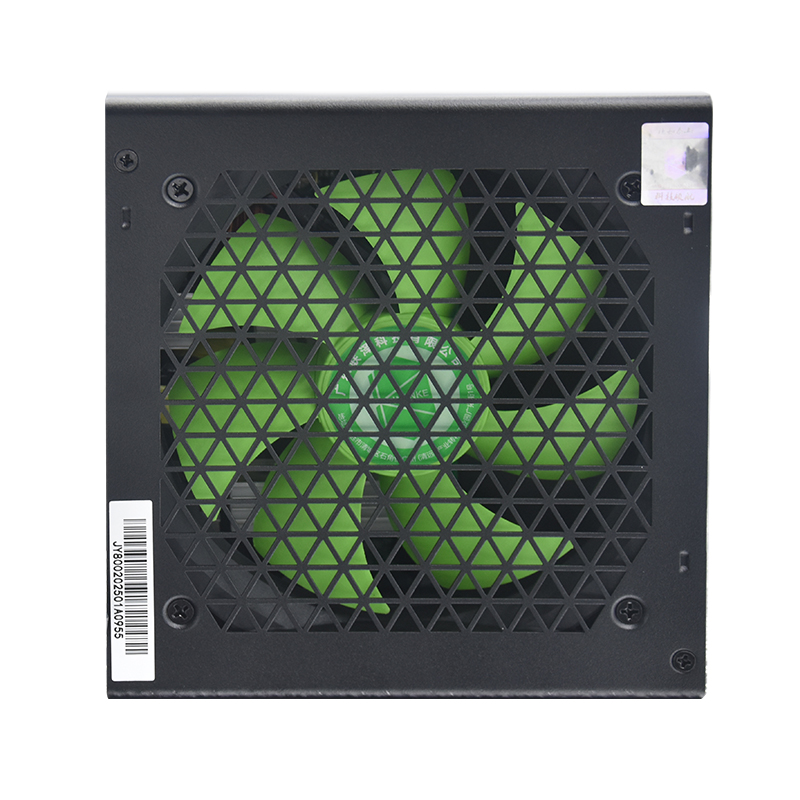

Introduction Photos

300W

Features:
Intelligent temperature control, automatic regulation of fan speed according to the internal temperature of power supply, to effectively reduce noise.;
Standby Energy Consumption: < 2W (0.18A);
Low ripple, low noise, high efficiency;
Overload protection, overvoltage protection and short circuit protection;
MTBF>=50,000 hours.

Product Performance

Type	LJ-401D-300W
Dimension	150mm86mm140mm (WHL)
Dimension of Fan	120cm
Efficiency	> 68% Full load
AC Input Voltage	180-264V, normal：220V
DC Output	+3.3V	+5V	+12V	-12V	+5VSB
Max Current	12A	16A	22A	0.5A	2A
Max Array Output	100W
	264W
	250W
Output Wire Interface	20-Pin Main*1	4-Pin CPU*1	15-Pin SATA*4	4-Pin IDE*1	4-Pin FDD*1
Output Wire Interface	400mm	400mm	350mm+300mm	150mm	150mm
