LJ-880ABX

Circuit architecture/电路架构: LLC谐振+同步整流+DC-DC

Rectifier/整流桥: GBU1510*2 15A/1000V

Efficiency/效率: 80+金牌

Over Voltage Protection/过电压保护: 是

Protect/保护 : OPP/OVP/OCP/UVP/OTP

Cpu support/CPU支持 : inter、AMD

Input Voltage/输入电压 : AC100-264V

Input Frequency Range/输入频率范围 : 47-63HZ

Input Current/输入电流 : 6A-12A

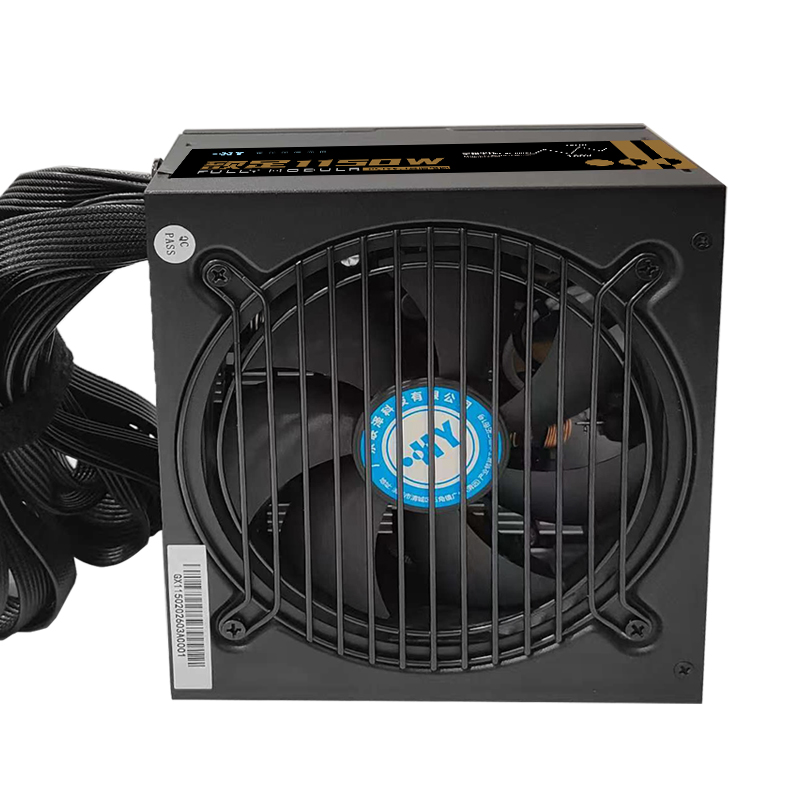

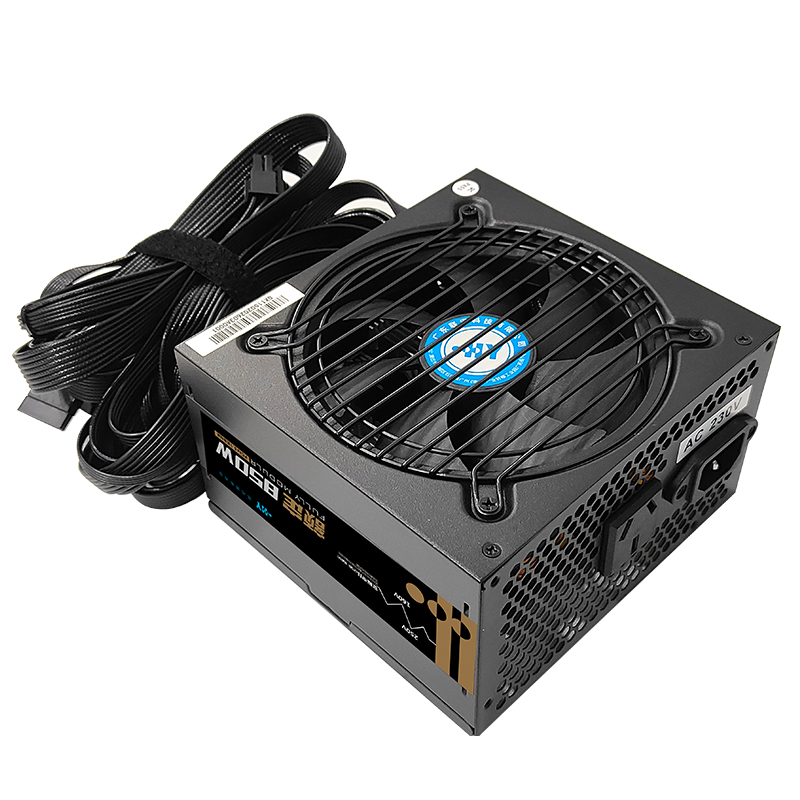

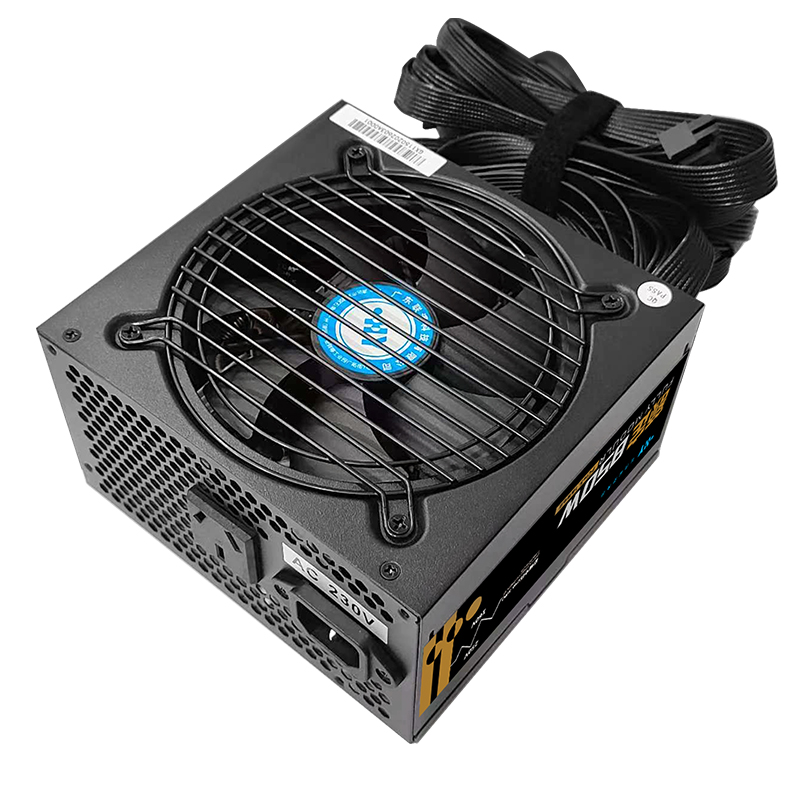

Introduction Photos

Features:
Intelligent temperature control;
Automatic regulation of fan speed according to the internal temperature of power supply to effectively reduce noise;
Standby Energy Consumption: < 2W (0.18A);
Low ripple, low noise, high efficiency;
Overload protection, overvoltage protection and short circuit protection;
MTBF>=50,000 hours

Product Performance

Type	LJ-880ABX
Dimension	150mm86mm140mm (WHL)
Dimension of Fan	120cm
Efficiency	> 68% Full load
AC Input Voltage	180-264V, normal：220V
DC Output	+3.3V	+5V	+12V	-12V	+5VSB
Max Current	14A	16A	15A	0.3A	2A
Max Array Output	100W 840W 3.6W 12.5W
	850W

Output Wire Interface	20-Pin Main*1	4-Pin CPU*1	15-Pin SATA*2	4-Pin IDE*1
Output Wire Interface	320mm	400mm	150mm+400mm	200mm
