LJ-1U-FLEX-300W

PFC type/PFC类型： PPFC

Circuit architecture/电路架构：双晶正激+DC-DC

Efficiency/效率：80+白牌

Rectifier/整流桥：GBU806 8A/600V

Over Voltage Protection/过电压保护：是

Protect/保护： OPP/OVP/OCP/UVP/OTP

Cpu support/CPU支持： inter、AMD

Input Voltage/输入电压： AC180-264V

Input Frequency Range/输入频率范围： 47-63HZ

Input Current/输入电流：3A-5A

PWM/ MOSFET：PWM20N50*2 20A/500V

辅助电源电路IC SR826

12V整流控制IC：NDF23A05 10A

12V同步整流MOSFET：MBR30100*2 30A/100V

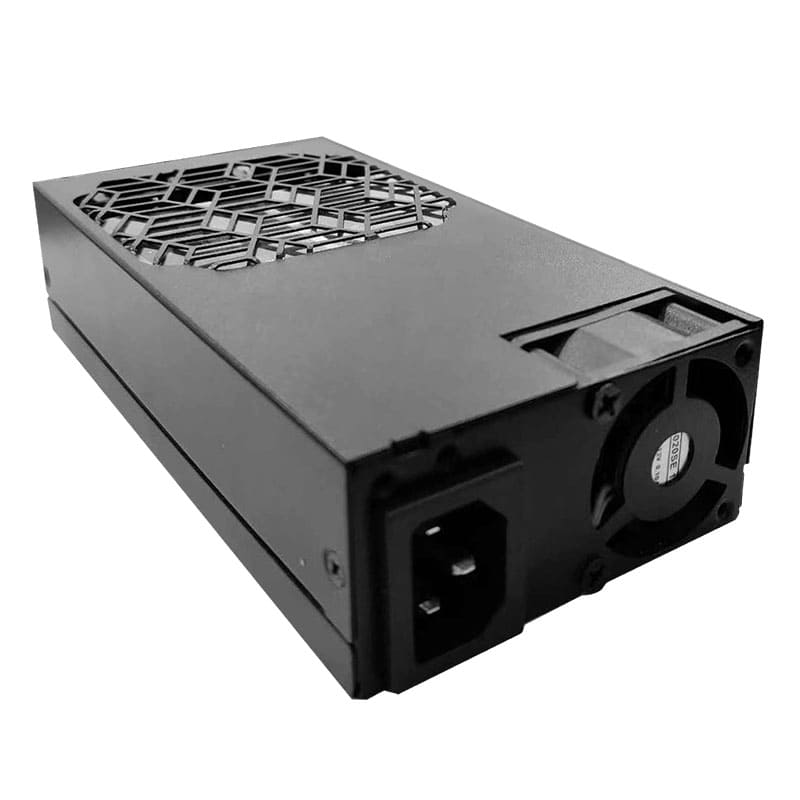

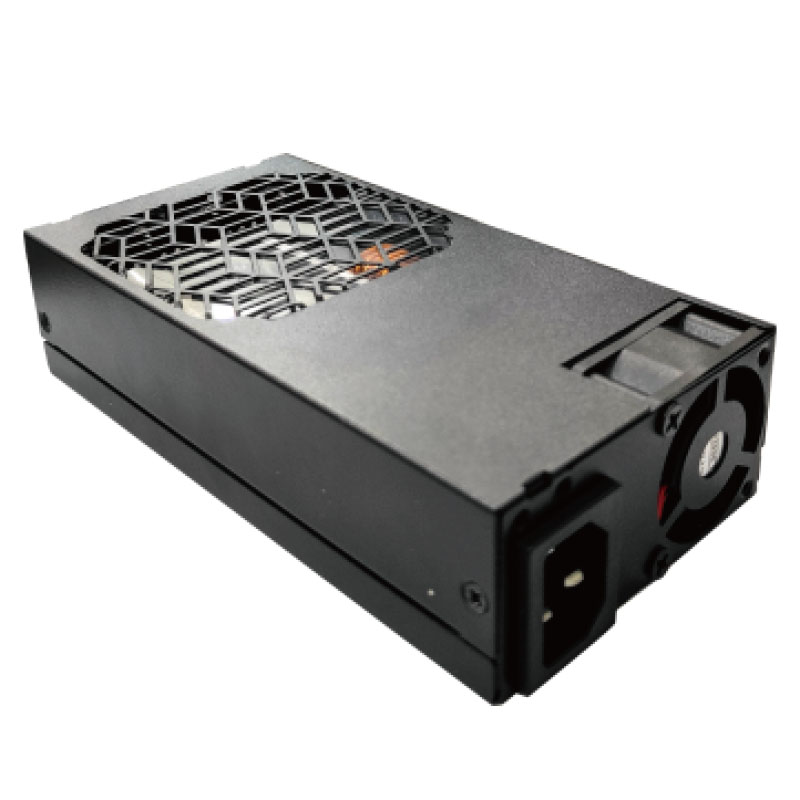

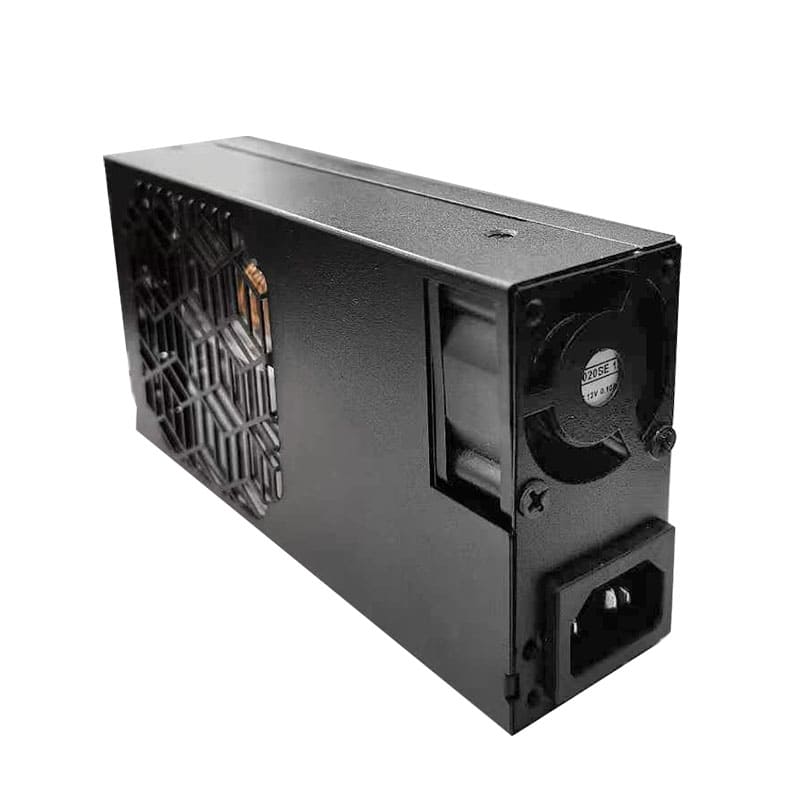

Introduction Photos

Features:

Complies with SSI EPS1U 2.93;

Ball fan, temperature control circuit;

Overvoltage protection, over-current protection, 240 VA protection, thermal protection, input under-voltage protection;

Low ripple, low noise, high efficiency.

Product Performance

Input voltage: 180V-264V

Input frequency: 50Hz/60Hz

Output power: 250W

Output voltage: 3.3V, 5V, 12V1, -12V, +5VSB

Output path: 5

Output efficiency: >70% (typical)

Dimension (W×H×L): 100×40×190
