LJ-1U-FLEX-600W|广州联杰电子

LJ-1U-FLEX-600W

Circuit architecture/电路架构:LLC谐振+同步整流+DC-DC

Efficiency/效率: 80+金牌

Rectifier/整流桥:GBU1006 10A/600V

Over Voltage Protection/过电压保护:是

Protect/保护: OPP/OVP/OCP/UVP/OTP

Cpu support/CPU支持: inter、AMD

Input Voltage/输入电压: AC100-264V

Input Frequency Range/输入频率范围: 47-63HZ

Input Current/输入电流:5A-8A

PWM/PFC MOSFET: PWM60R140*2 PFC60R090 47A/550V.APFC二极管碳化硅6A/650V

辅助电源电路IC: XY6115

谐振/12V同步整流控制IC: HR1213G/MP6924A MPS

12V同步整流MOSFET: FTG014N04SA 1.4mR/40V

3.3V/5V DC-DC MOSFET: FTG018N03S

3.3V/5V DC-DC控制IC: EM5301F

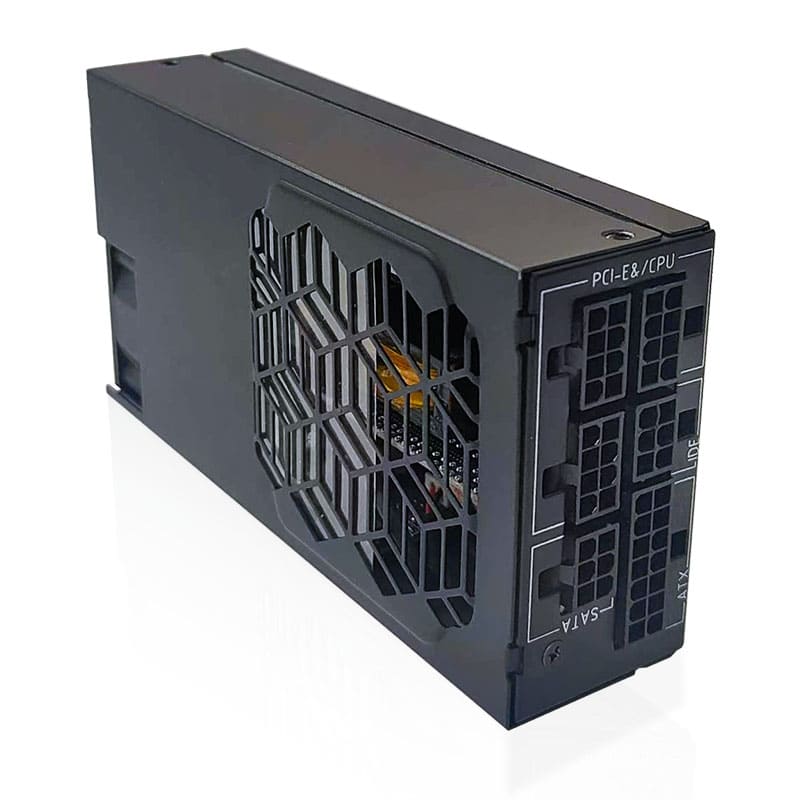

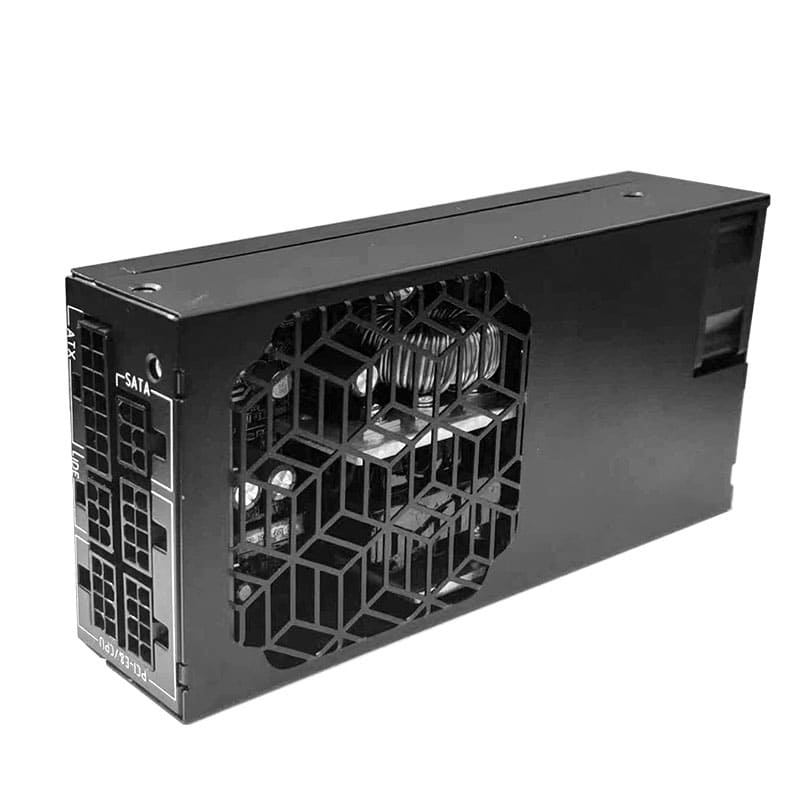

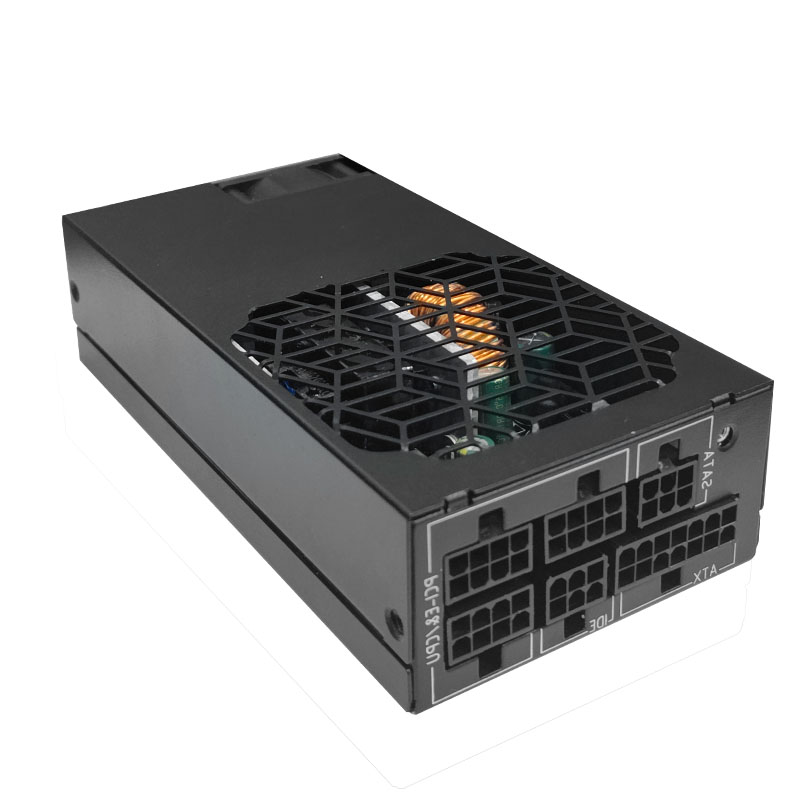

Introduction Photos

Features:

Complies with SSI EPS1U 2.93;

Ball fan, temperature control circuit;

Overvoltage protection, over-current protection, 240 VA protection, thermal protection, input under-voltage protection;

Low ripple, low noise, high efficiency.

Product Performance:

Input voltage: AC100-264V

Input frequency: 47-63HZ

Output power: 600W

Output voltage: 3.3V, 5V, 12V1, -12V, +5VSB

Output path: 5

Output efficiency: >90% (typical)

Dimension (W×H×L): 150x80x40mm
