LJ-SFX-660BX|广州联杰电子

LJ-SFX-660BX

PFC type/PFC类型： APFC

Circuit architecture/电路架构：主动式PFC

Efficiency/效率： 80+铜牌

Rectifier/整流桥：KBJ1510 15A/1000V

Over Voltage Protection/过电压保护：是

Protect/保护： OPP/OVP/OCP/UVP/OTP

Cpu support/CPU：支持 inter、AMD

Input Voltage/输入电压： AC100-264V

Input Frequency Range/输入频率范围：47-63HZ

Input Current/输入电流：5A-10A

PWM/PFC MOSFET：SI40SR60F(40A/600V). RS20N50F T0-220F 塑封 (20A/500V) PFC二极管SID8P65F DIODE(8A/650V)

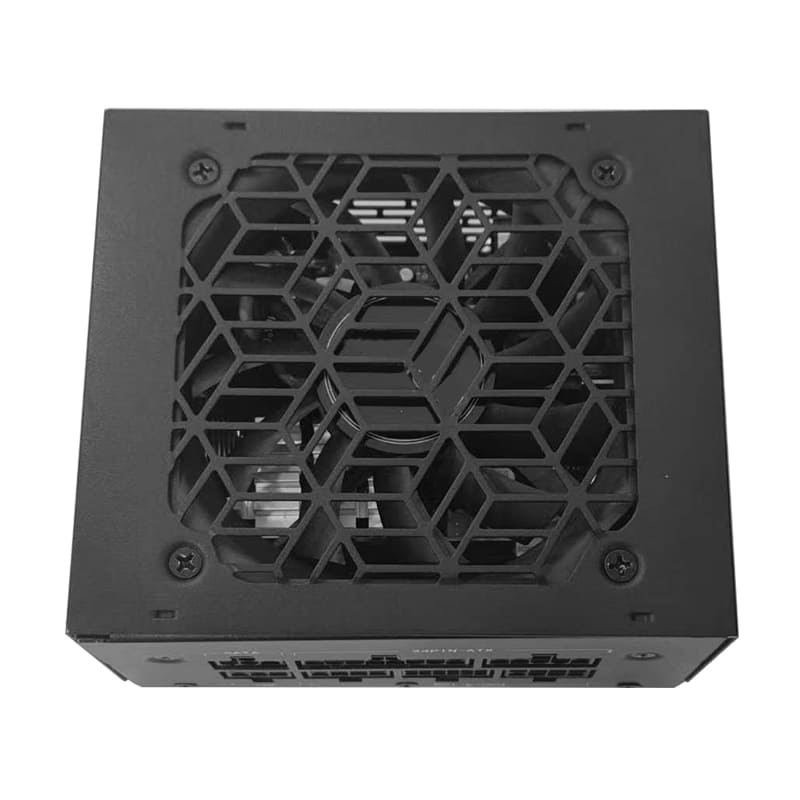

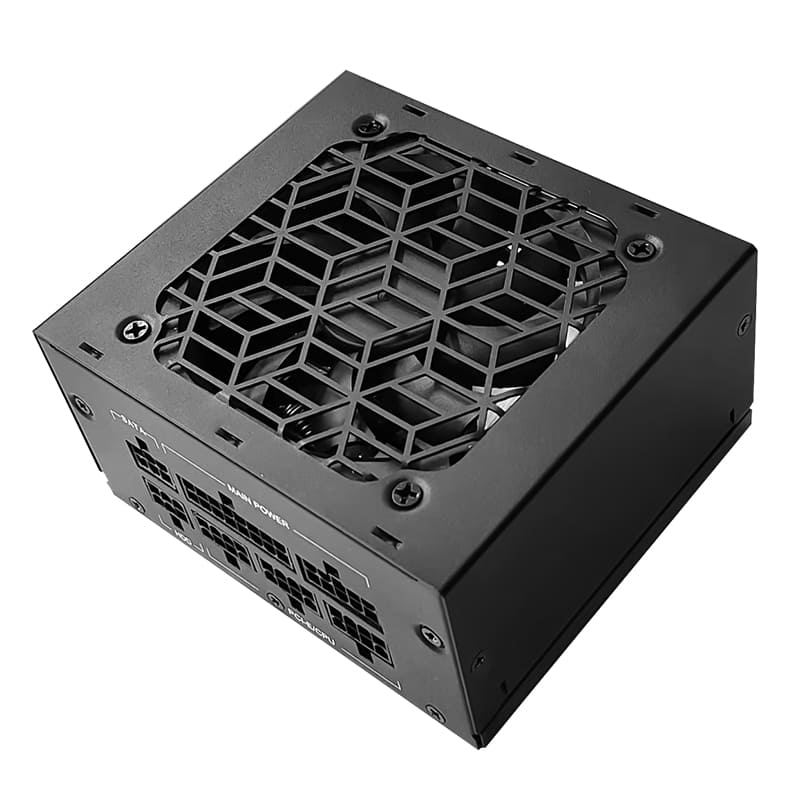

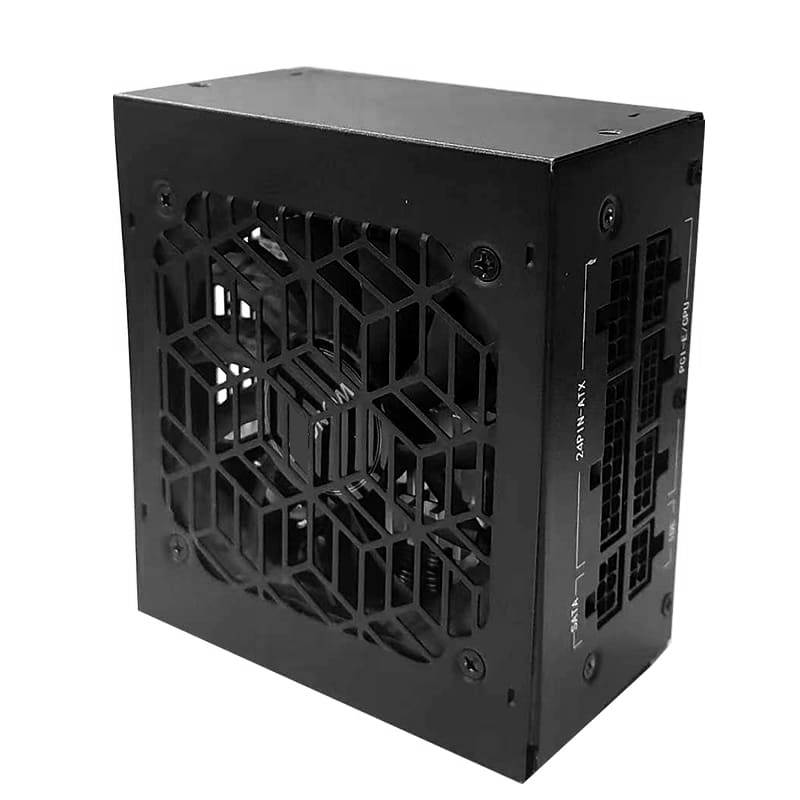

Introduction Photos

LJ-SFX-600W

● Confirm SFX12V Version

● Output Capacity: 300 Watts Continuous

● Low Ripple & Noise & High efficiency

● Operation Temperature: 0~50℃

● Dimension: 125mm* 100mm *63.5mm

● Single 8015mm Low-Noise Fan

● Life expectancy: MTBF :≥100kh hours

● APFC（PFC>99%）

● Multiple Protections Function：(OCP、OVP、UVP、OPP)

● Safety Approvals：CE,FCC,CB,CCC

Output Connectors:

Specification：

Model No	LJ-SFX-600W
Output Wattage	300W
PFC	no
Efficiency	> 80 % Full load
P. G	100-500 ms
Hold-up Time	16ms Min
Weight	1.3 KG
Color	Silver
Fan	Single 8015*1
Dimension	125mm (L) x 100mm(W) x 63.5mm(H)
Protection	OCP、OVP、UVP、OPP、Short Circuit Protection

OUTPUT
Voltage	+5V	+12V	-12V	+3.3V	+5Vsb
MIN	0.2	0.6	0.0	0.1	0.0
NOM	7.5	9.5	0.15	10.5	1
MAX	15	20	0.3	15	2.5
Units	AMPS	AMPS	AMPS	AMPS	AMPS
1) Total DC output power shall not exceed 600 Watts. 2) +5V and +3.3V outputs shall not exceed 100 Watts 3) +5V, +3.3V and +12V outputs shall not exceed 600 Watts.
