LJ-SFX-651MK

Circuit architecture/电路架构: 主动式PFC

Efficiency/效率: 80+铜牌

Rectifier/整流桥: KBJ1006 10A/600V

Over Voltage Protection/过电压保护: 是

Protect/保护 : OPP/OVP/OCP/UVP/OTP

Cpu support/CPU支持: inter、AMD

Input Voltage/输入电压: AC100-264V

Input Frequency Range/输入频率范围: 47-63HZ

Input Current/输入电流: 5A-8A

PWM/PFC MOSFET: 55R140 23A/550V 140mΩ. PFC二极管8S06 DIODE(8A/600V)

辅助电源电路IC: PN8141

APFC控制IC: CM6805/SC3805

12V MOSFET: P60L60PT*2 60A60V LOW VF

5V/3.3V MOSFET: 3045C 30A45V

集成电路IC: GR8313/UTC8313

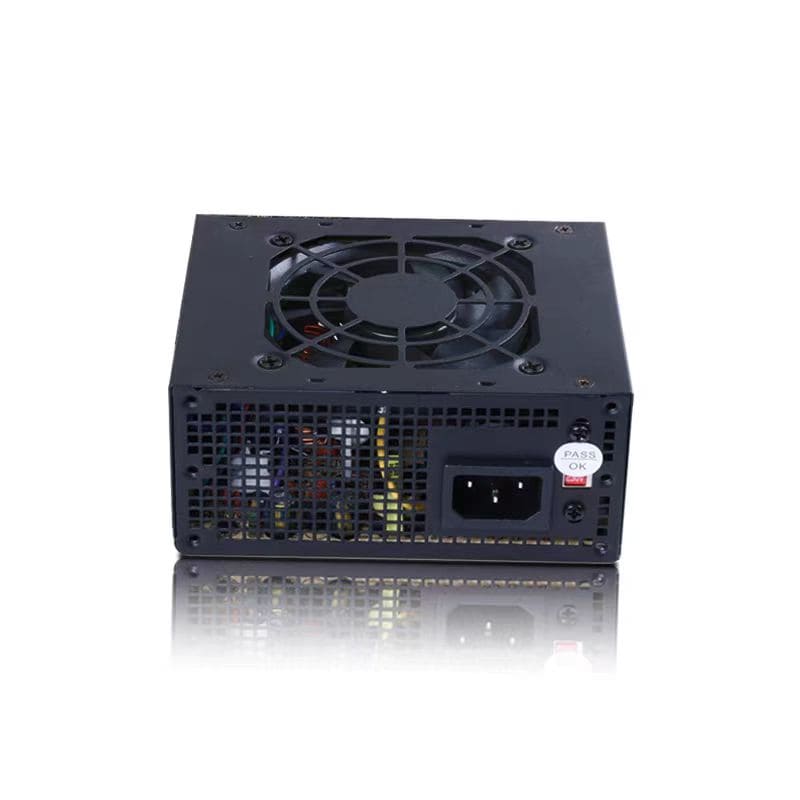

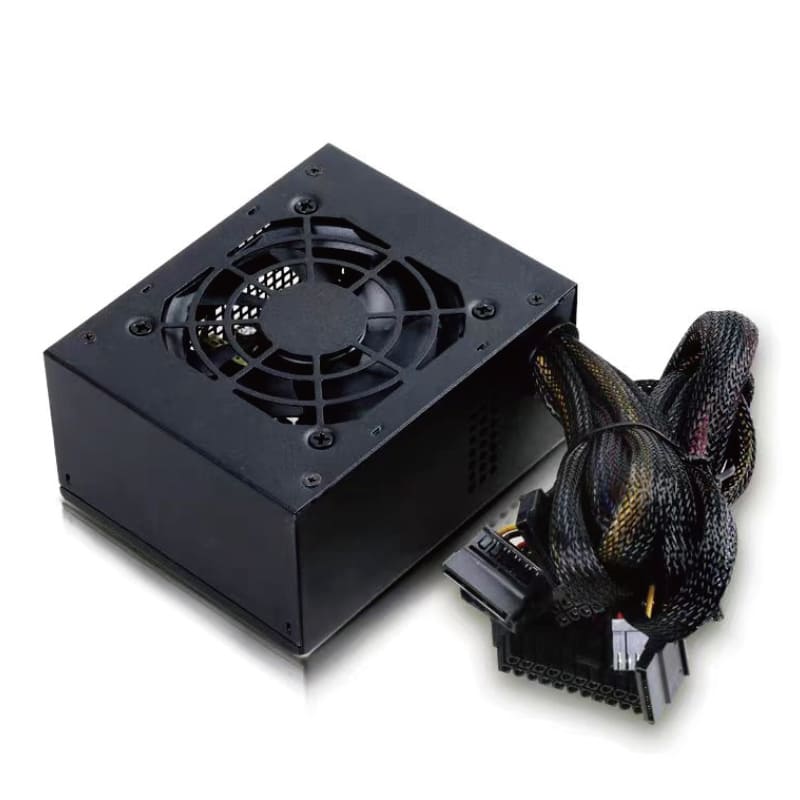

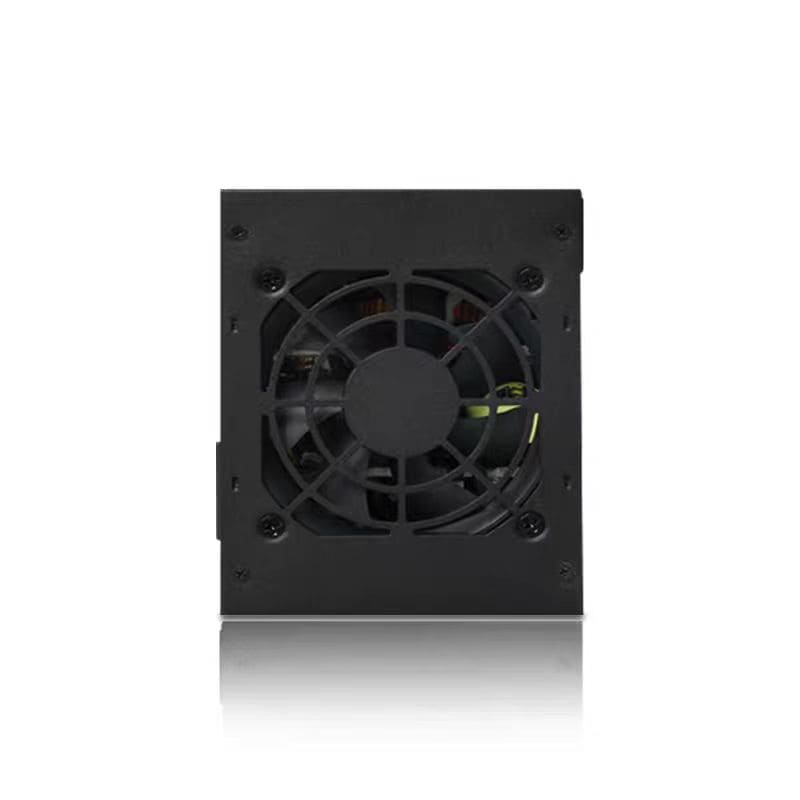

Introduction Photos

LJ-SFX-300W

● Confirm SFX12V Version

● Output Capacity: 200 Watts Continuous

● Low Ripple & Noise & High efficiency

● Operation Temperature:0~50℃

● Dimension: 125mm* 100mm *63.5mm

● Single 8015mm Low-Noise Fan

● Life expectancy: MTBF :≥100kh hours

● APFC（PFC>99%）

● Multiple Protections Function：(OCP、OVP、UVP、OPP)

● Safety Approvals：CE,FCC,CB,CCC

Output Connectors:

Specification：

Model No	LJ-SFX-651MK
Output Wattage	300W
PFC	no
Efficiency	>80 % Full load
P. G	100-500 ms
Hold-up Time	16ms Min
Weight	1.3 KG
Color	Silver
Fan	Single 8015*1
Dimension	125mm (L) x 100mm(W) x 63.5mm(H)
Protection	OCP、OVP、UVP、OPP、Short Circuit Protection

OUTPUT
Voltage	+5V	+12V	-12V	+3.3V	+5Vsb
MIN	0.2	0.6	0.0	0.1	0.0
NOM	7	7	0.25	7	1.25
MAX	16	22	0.5	12	2.5
Units	AMPS	AMPS	AMPS	AMPS	AMPS
1) Total DC output power shall not exceed 300 Watts. 2) +5V and +3.3V outputs shall not exceed 80 Watts 3) +5V, +3.3V and +12V outputs shall not exceed 185 Watts.
